GYXTS 1-12 Fiber SM Armored Cable
Outdoor armored 1-12F GYXTS central tube structure Steel Tape fiber optical cable

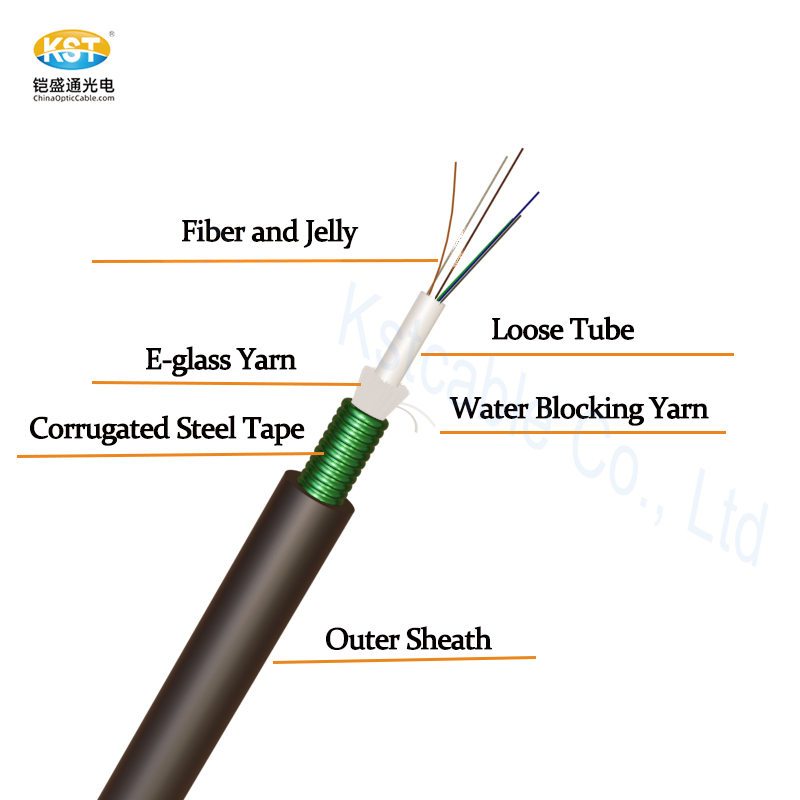

The cable fiber count is normally 1-12 cores, fibers and jelly are filled in a high modulus plastic loose tube to be a central tube structure,outside the tube is E-glass yarn and several Scattered water-blocking yarns to prevent water moisture, a layer of corrugated steel tape wrapped outside of tube units to prevent rat damage, water moisture resistance and also ,together with E-glass yarn function as tensile strength meber reinforcing the cable tension strength,the utmost PE outer sheath integrates all above to be a compact optical fiber cable
