Photoelectric composite Hybrid micro armored fiber cable  6F G657A2 with 2*8 AWG Conductors

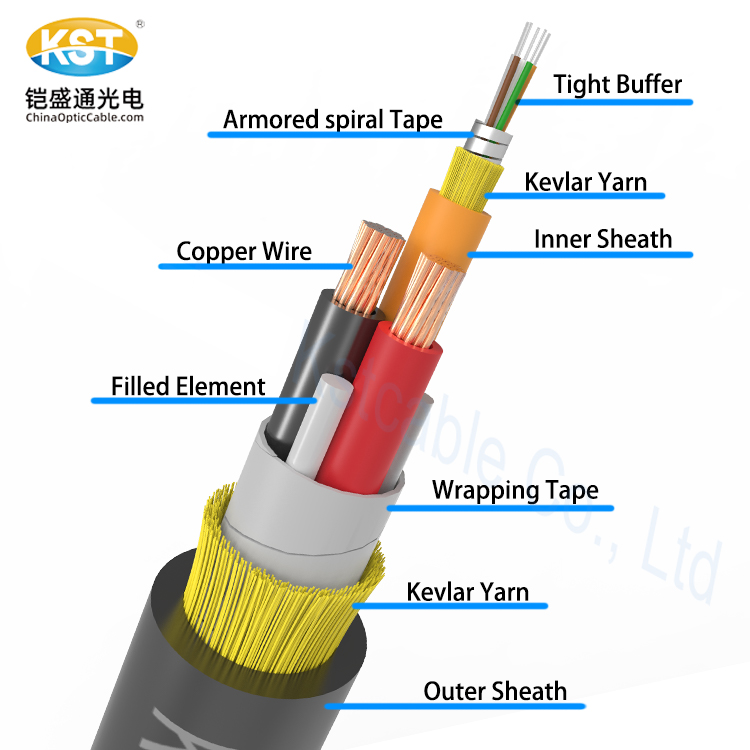

The overall structure of this cable consists of 3 functional units , 3 Filled element units  and 3 outer layers. The yellow functional unit with 6 tight buffers,  A layer of rat-proof spiral armored steel tape wrapping outside of tight buffer, together with a layer of Kevlar yarn reinforce the tensile resistance of the cable,  the outermost of the yellow unit is LSZH jacket ,the main function of the yellow unit is signal transmission ;                                                                                                                                                  The red and black functional units have the same structure of inner 8AWG copper wire and outer PE(or OFCP/PVC /LSZH/OFNP)jacket, the main function of the copper wire is conductive and grounding ;            To ensure the structural stability and reinforce the tensile strength of the entire cable ,3 PP filled elements are placed inside the cable;                                                                                                                            For outer 3 layers, including inner wrapping tape,middle Kevlar yarn and outermost PE (or OFCP/PVC /LSZH/OFNP) outer sheath , together with all above contents,completed to be a integrated cable.
